- A set of rules that defines how valid instructions are written in a programming language
- No ambiguity is allowed in the syntax of a programming language

- They are used to describe the syntax rules of a programming language, that is, the way valid instructions should be written

FunctionName ( ) { . . . }

- Comments
* Words which appear in a box indicate that they are optional
* The three dots indicate that the preceding symbol can be repeated
* Words in boldface type must always be present

- Surprise: main() is also a function !!!
- Who calls main() ? the operating system

main() { . . . }

- Comments
* The operating system expects main to return a value when main finishes executing
* By convention, we return the value 0 meaning that everything went OK (we can choose to return other values like 1,2 etc. to inform the operating system that something went wrong)
* If we choose to return a value to the operating system then we must use put the word int before the word main

- Programs are made up of functions (one of them has to be main)

. . . FunctionDefinition . . .

- Example

//******************************************************************
// Sample program
// This program computes the square and cube of 27
//******************************************************************
#include <iostream.h>

int Square( int );
int Cube( int );

int main()
{
    cout << "The square of 27 is " << Square(27) << endl;
    cout << "and the cube of 27 is " << Cube(27) << endl;
    return 0;
}

int Square( int n )
{
    return n * n;
}

int Cube( int n )
{
    return n * n * n;
}

- Names that we use to refer to things (e.g., variables, constants, functions etc.) in our programs

- Names are meaningless to the computer; it is recommended that you choose names that will be meaningful to a person reading the program

- Identifiers are composed of
* Letters (A-Z, a-z)
* Digits (0-9)
* Underscore (_)

- Identifiers must begin with a letter or underscore (not with a digit !!)

LetterOrUnderscore ...

- The capital and small letters are different

- Examples of valid identifiers

x, sum_of_squares, J9, box22A, GetData, count, COUNT

- Examples of invalid identifiers

40Hours (starts with a digit)
Get Data (includes a blank)
box-22 (includes the hyphen -)
const_in_$ (includes the character $)

- Identifiers that have been reserved for special purpose

- Examples of reserved words (see also Appendix A)

int, if, const, else, float, friend, return

- The data type determines how the data is represented in the computer and the kinds of processing that the computer can perform on it

- Basic data types: int, float, char

- int
* Used to represent integer values (e.g., 22, 16, 0, -4600)
* The computer usually allocates 16 bits (2 bytes) for integers which means that the range of values is [-32768, 32767]
* Variations of int: short int (8 bits (1 byte) - range of values is [-128, 127]) and long int (32 bits (4 bytes) range of values is [-2147483648, 2147483647])
* Integer overflow occurs when we try to compute values outside the alowable range of values br * Sizes (i.e., number of bits) are machine dependent

- float
* Used to represent real numbers (e.g., 18.0, 127.54, 4., .8)
* Variations of float(single precision - 4 bytes and 6 decimal digits): double (double precision - 8 bytes and 16 decimal digits), long double (even greater precision)
* Real numbers can also be expressed in scientific notation: mEx = m 10 ^ x (e.g., 3.504E12 = 3.504 10 ^ 12, -2.5E-4 = -2.5 10 ^ -4)

- char
* Used to represent alphanumeric symbols (letters, digits, special symbols)
* examples: 'A', 'a', '8', '+' '$', '*', ' '
* characters need to be enclosed in single quotes so that the compiler can differentiate between the character data '8' and the integer value 8
* 8 bits (1 byte) are used to represent characters

NullStatement Declaration AssignmentStatement IncrementStatement DecrementStatement OutputStatement Block

(more statements will be discussed later)

- It is just a semicolon (;) and it does absolutely nothing at execution time

- It is a statement that associates an identifier with a memory location and the contents of this memory location

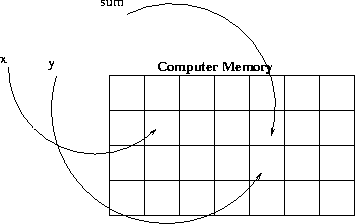

- In one of our previous examples, we used the statement int x, y, sum; to declare x, y, and sum as variables whose contents are of type int

- Variables: An identifier associated with a memory location whose contents can change

DataType Identifier ... ;

- Constant: An identifier associated with a memory location whose contents can not change

- The keyword const must be used to declare a constant

- Examples

const float PI=3.14159;
const int MAX=12;
const char star='*';

const DataType Identifier = LiteralValue ;

- It stores the value of an expression into a variable

Variable = Expression ;

- Assuming the following declarations

int x,i,j,num;
float y,w;
char c;

x=10; num=5+x; y=1.2-w; c='A'; i=j+2; are valid assignments

- Expressions are made up of constants, variables, and operators

- Operators: +, -, *, /, % (modulus - remainder from integer division)

x+y, alpha+2, rate-6.0, alpha/num+2 5%2 are valid expressions

- Warning: integer versus float division

6/2=3, 7/2=3, 1/2=0 but 7.0/2.0=3.5, 1.0/2.0=0.5

<Table from page 66>

- Mixing data types in the same expression

* The compiler applies certain rules for converting operands from one type to another
* Rule: convert lower type to higher type
* Hierarchy: long double, double, float, long int, int, short int

5.0+10 --> 5.0+10.0 --> 15.0

- Important: the left-hand side of an assignment must be a variable

5=num+2; 'A'=c; j+2=i; i*j=num; are invalid assignments !!

- Note: the symbol '=' means here "store a value" (not equal)

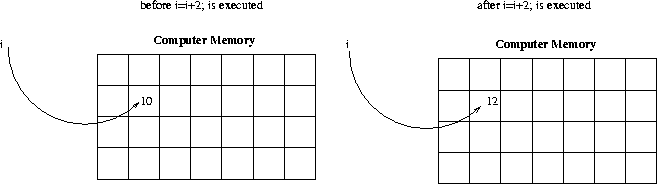

i=i+2 is a meaningful assignment !!!

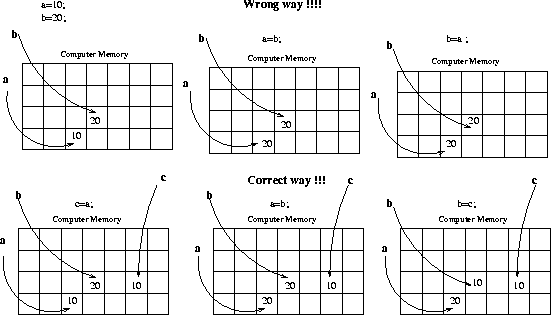

- Switching values between two variables

- Mixing types in the same assignment statement

* The value of the right-hand side is converted to the data type of the variable in the left-hand side
* Using the above declarations

i=2.2; will result i=2 (truncation), y=x+8; will result y=18.0
