Selection Control Structures

• Flow of control

- The order in which the computer executes statements in a program

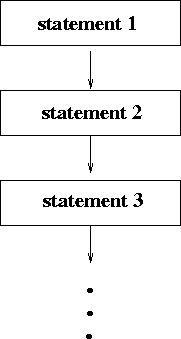

• Sequential control

- Statements are executed one after the other

• Control structure

- A statement used to alter the sequential flow of control (see our discussion in Chapter 1)

- The selection structure, and the loop structure are examples of control strucures

Selection structures

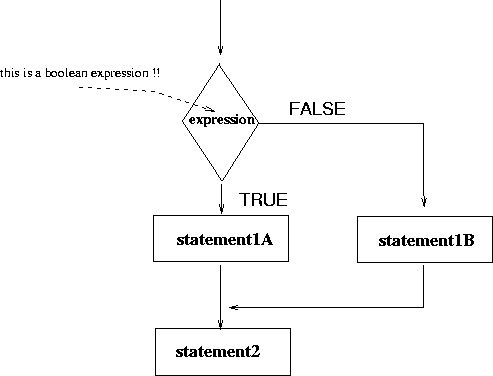

• The if-then-else form

 if ( Expression ) Statement1A else Statement1B

- If the condition in parentheses (expression) is true, then perform one action, else perform a different action

- Boolean expressions are either true (which is represented by any nonzero number) or false (which is represented by the number 0)

- Statement1A is called the then-clause while Statement1B is called the else-clause

if (number > 0)
cout << "The number is positive" << endl;
else cout << "The number is either negative or zero" << endl;

• Blocks (compound statements)

- Statement1A and Statement1B may correspond to a block of statements

- Block of statements must be encloded in { }

if (number > 0)
{
cout << "The number is : " << number << endl;
cout << "The number is positive" << endl;
}
else
{
cout << "Not a positive number" << endl;
cout << "The number is either negative or zero" << endl;
}

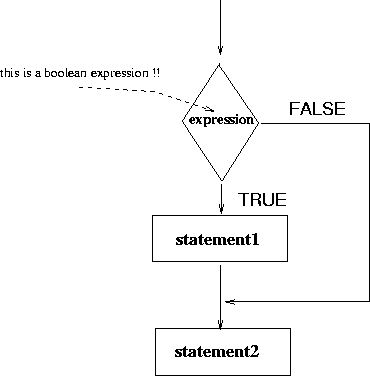

• The if-then form

- If the condition in parentheses (expression) is true, then perform some action; otherwise, don't do anything

 if ( Expression ) Statement

if (age < 18)
cout << "Not an eligible ";
cout << "voter." << endl;

- Statement may correspond to a block of statements (must be enclosed in { })

if (age < 18)
{
n = 18 - age;
cout << "Not an eligible ";
}
cout << "voter." << endl;

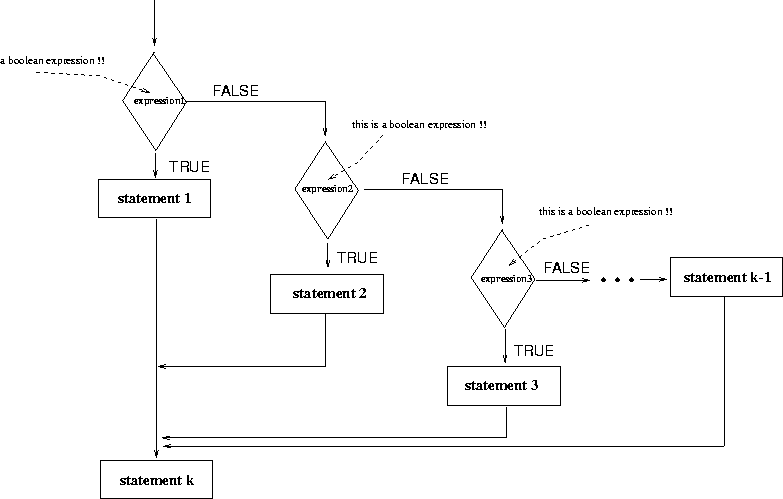

• Nested if statements

- Problems which involve multiple decisions can be coded using nested if statements

 if ( Expression1 ) Statement1 else if Expression2 ) Statement2 else if Expression3 ) Statement3 . . . else Statementk-1 Statementk

if (number > 0)
{
cout << "The number is : " << number << endl;
cout << "The number is positive" << endl;
}
else if (number < 0)
{
cout << "The number is : " << number << endl;
cout << "The number is negative" << endl;
}
else
{
cout << "The number is : " << number << endl;
cout << "The number is equal to zero" << endl;
}

- Nested if structures yield less comparisons (more efficient code)

- Consider the following alternative implementation
(you need to make 3 comparisons no matter what value is stored in "number")

if (number > 0)
{
cout << "The number is : " << number << endl;
cout << "The number is positive" << endl;
}
if (number < 0)
{
cout << "The number is : " << number << endl;
cout << "The number is negative" << endl;
}
if (number == 0) // the symbol '==' means equal to
{
cout << "The number is : " << number << endl;
cout << "The number is equal to zero" << endl;
}

- The body of an if statement can contain other if statements

if (sum > 40)
if (average < 20)
cout << "The sum is > 40 and the average is < 20" << endl;
else
cout << "The sum is > 40 and the average is >= 20" << endl;
else
cout << "The sum is <= 40" << endl;

• The dangling else

- When if statements are nested, it is often confusing to associate an if with its corresponding else

if (sum > 40)
if (average < 20)
cout << "The sum is > 40 and the average is < 20" << endl;
else
cout << "The sum is <= 40" << endl;

- Rule: in the absence of braces, an else is always paired with the closest preceding if that doesn't already have an else paired with it !!

- So, does it make sense to rewrite the above segment of code as follows ?

if (sum > 40)
if (average < 20)
cout << "The sum is > 40 and the average is < 20" << endl;
else
cout << "The sum is <= 40" << endl;

- No !!! (changing the indentation does not make any difference !!!)

- So, what is the solution ? Use braces !!

if (sum > 40)
{
if (average < 20)
cout << "The sum is > 40 and the average is < 20" << endl;
}
else
cout << "The sum is <= 40" << endl; average

- The braces indicate that the else statement belongs to the outer if statement

Logical (or Boolean) expressions

• It is an expression whose result is either true or false

sum > 40, average < 20, (sum-average) < 10

• Creating logical expressions using relational operators

```                  +---------------------------+
|   Relational Operators    |
+---+-----------------------+
|== |       equal to        |
+---+-----------------------+
|!= |     not equal to      |
+---+-----------------------+
|>  |     greater than      |
+---+-----------------------+
|<  |       less than       |
+---+-----------------------+
|>= | greater than or equal |
+---+-----------------------+
|<= |  less than or equal   |
+---+-----------------------+
```

if (denom ! = 0)
result = num / denom;

<Table from page 192>

• Common mistakes using the '==' operator

- Do not confuse the assignment operator '=' with the '==' operator

* x=3 means assign the value 3 to the variable x
* x==3 means check if x is equal to 3 * Which message do you think will be printed on the screen if the following segment of code is executed ?

cin >> n;
if(n=3)
cout << "n equals 3";
else
cout << "n doesn't equal 3";

* This segment of code will always print the message "n equals 3" !! Why ??

* When assignments are treated as logical expressions, they have the value of the expression at the right hand side (nonzero values correspond to true and zero values correspond to false)

- Comparing numbers for equality

* if x,y are integers, you check equality using the statement: if (x == y)

* if w,z are floats, you never check equality using the statement: if (w == z)

* In this case, you need to compare the absolute value of the difference of the two numbers with a very small number (e.g., if (fabs(w-z) < 0.00001))

* This is because real numbers cannot be represented exactly in the memory of the computer (truncation or rounding take place during computations)

oneThird = 1.0 / 3.0;
x = f2oneThird + f2oneThird + f2oneThird;

* What is the value of x ? (x=0.999999)

• Involving characters in a logical expression

- Many times, it is useful to compare characters in an expression (e.g., suppose that you want to sort a list of names alphabetically)

- In each language, there is a predefined ordering for all the characters (each character is associated with an integer value; try cout << int('A'); to print the integer value associated with 'A')

- The following ordering is true:

'0' '1' ... '9' 'A' 'B' ... 'Z' 'a' 'b' ... 'z'

- According to this ordering:

'0' < '1' < ... < '9' < 'A' < 'B' < ... < 'Z' < 'a' < 'b' < ... 'z'

- The following are valid logical expressions

'M' < 'R' (true), 'm' < 'r' (true), 'm' < 'R' (false), '0' < '1' (true)

• Creating logical expressions using logical operators

- Logical operators are used to construct more complex logical expressions by combining a number of logical expressions together

• Fundamental logical operators

```                       +------------------+
|Logical Operators |
+---+--------------+
|&& | logical AND  |
+---+--------------+
||| |  logical OR  |
+---+--------------+
|!  |  logical NOT |
+---+--------------+
```

- Truth table for the logical AND operator

* The logical AND of two logical expressions is true if both expressions are true

<Table from page 194>

(finalScore > 90) && (midtermScore > 70), (x - y < 1) && (y > 10)
- Truth table for the logical OR operator

* The logical OR of two logical expressions is true if at least one of the expressions is true

<Table from page 195>

(midtermGrade == 'A') || (finalGrade == 'A'), (x < 10) || (y - 2 < 20)

- Truth table for the logical NOT operator

* The logical NOT of a logical expression is true if the logical expression is false

<Table from page 195>

!(hours > 40) is equivalent to hours <= 40

- Note that the same logical expression can be written in many different ways !!

!(a == b) is equivalent to a != b
!(a == b || a == c) is equivalent to (a != b) && (a != c)
!(a == b && c > d) is equivalent to (a != b) || (c <= d)
