Intuitively, this is simply an explicit specification of the behavior's execution conditions (i.e., preconditions), and its effects (i.e., postconditions).

These behaviors may involve one or an entire collection of sequential or concurrently executing behaviors, again as is typical for BBS.

This representation merges the advantages of both abstract representations and behavior-based systems and allows a task plan or a strategy to be represented as a network of such behaviors. By encoding the task-specific sequences into the network links, we allow behaviors to be reused for different tasks.

1) Behavior activation conditions

• world preconditions - conditions that activate the behaviors based on a particular state of the environment.
• sequential preconditions - task-dependent conditions that must be met before activating the behavior. These are often postconditions of other existing behaviors, which allow for the description of complex temporal sequences.

We distinguish between three types of sequential preconditions, which determine the activation of behaviors during the behavior network execution:

• Permanent preconditions: preconditions that must be met during the entire execution of the behavior. A change from met to not met in the state of these preconditions automatically deactivates the behavior. These preconditions enable the representation of sequences of the following type: "the effects of some actions must be permanently true during the execution of this behavior".
• Enabling preconditions: preconditions that must be met immediately before the activation of a behavior. Their state can change during the behavior execution, without influencing the activation of the behavior. These preconditions enable the representation of sequences of the following type: "the achievement of some effects is sufficient to trigger the execution of this behavior".
• Ordering constraints: preconditions that must have been met at some point before the behavior is activated. They enable the representation of sequences of the following type: "some actions must have been executed before this behavior can be executed".

2) Behavior network execution

• Sequential execution, for the task segments containing temporal ordering constraints;
• Opportunistic execution, for the task segments for which the order of execution does not matter.

Within a behavior network, in order to determine if a behavior is active or not, together with precondition checking we use an activation spreading mechanism. The activation spreading works as follows: each behavior has an Activation level that represents the number of successor behaviors in the network that require the achievement of its postconditions. Any behavior with activation level greater than zero sends activation messages to all predecessor behaviors that do not have (or have not yet had) their postconditions met. The activation level is set to zero after each execution step, so it can be properly re-evaluated at each time, in order to respond to any environmental changes that might have occurred.

A behavior is activated iff:

( It is used in the current controller ) AND ( It is not inhibited ) AND ( Its controlled actuators are not locked ) AND ( The Activation level != 0 ) AND ( All ordering constraints = TRUE ) AND ( All permanent preconditions = TRUE ) AND (( All enabling preconditions = TRUE ) OR ( the behavior was active in the previous step ))

3) Hierarchical Behavior Networks

Figure 1

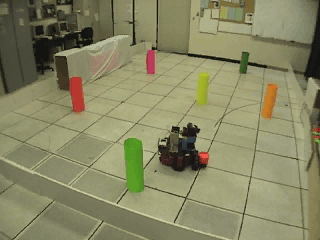

Experimental setup	Video of the task execution	Notes
	AVI [21.1 MB]	During this demonstration the robot visited the targets in the order: Pink, Yellow, Orange, Light-Green.

This control architecture has been used for numerous other experiments. Here are more videos on learning by demonstration and human-robot interaction for which our hierarchical behavior-based architecture has been used.
