Project Detail :

REQUIREMENTS:

The following requirements are the minimum that will be needed to be met in order complete the project for the class

R01

The software will access a database of previous 911 call information

R02

The software will not allow the user to alter any previous call information.

R03

The software will present the user with a map of the covered area and allow the user to select a geographical region of the map.

R04

The software will allow the user to choose a subset of the calls in the database based on day of occurrence.

R05

The software will allow the user to choose a subset of the calls in the database based on time of occurrence using a 24 hour clock.

R06

The software will retrieve information about all of the calls that fit the user’s criteria.

R07

The software will utilize a graphical user interface.

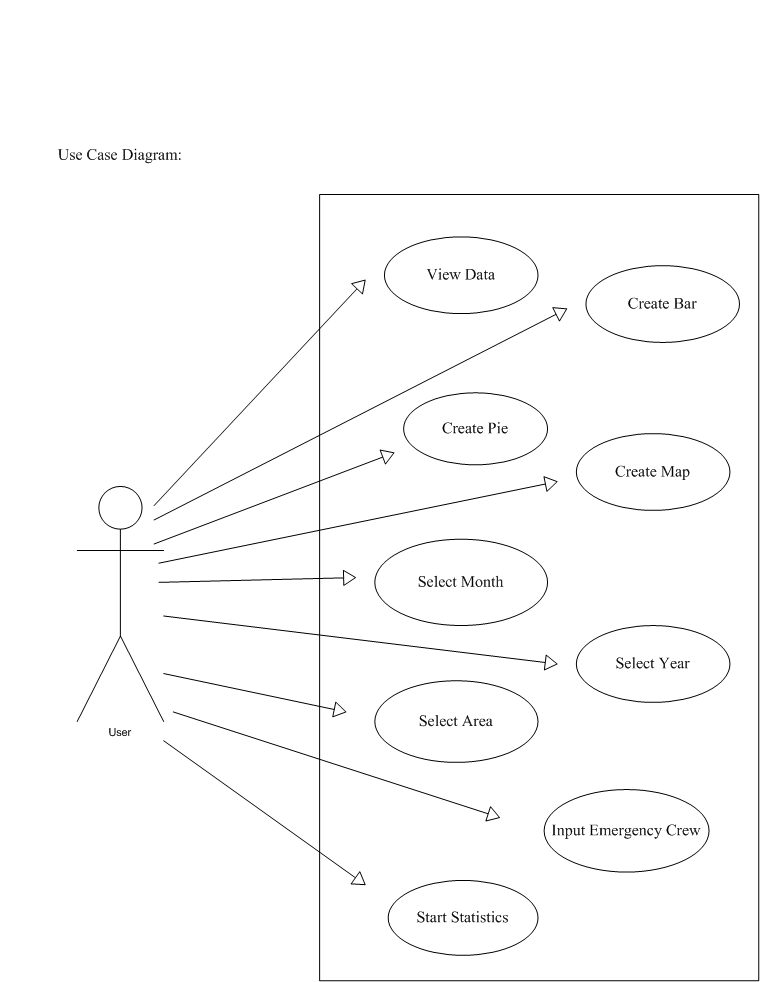

USE CASE DIAGRAM:

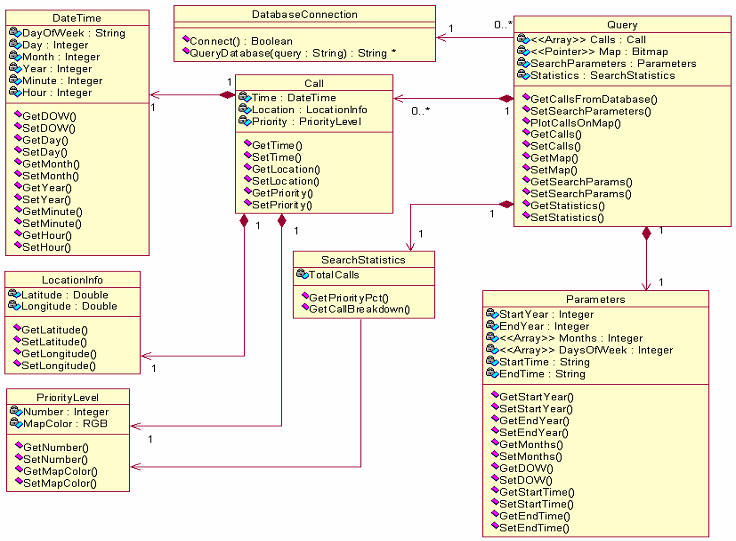

CLASS DIAGRAM:



SCREEN SHOT:

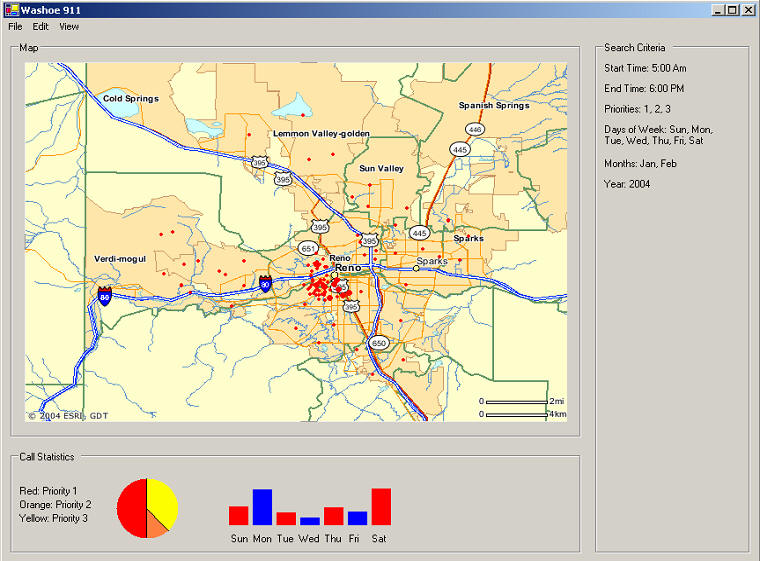

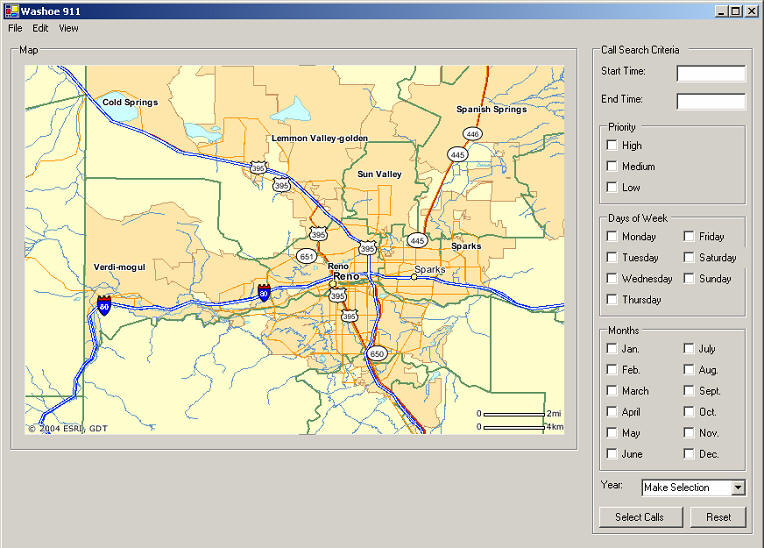

                            INPUT VIEW                                                                                       RESULT VIEW
