Results and Analysis



Evolving Three Basic Behaviors

In the first three experiments, we use CHC without scaling and the entire initial population is randomly generated. The threshold for the Hamming distance is ( tex2html_wrap_inline401 as is the norm for CHC. Scaled CHC is used to overcome the possible monopoly of solutions with extremely high fitness (caused by injection) in the complex environment. The fitness functions that were used are shown below:

  1. Food Approach (FA): tex2html_wrap395
  2. Obstacle Avoidance (OA): tex2html_wrap396
  3. Wall Following (WF): tex2html_wrap397

   figure76

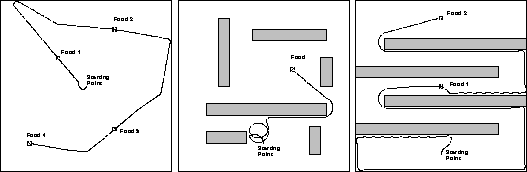

Figure 3: The simbot's path when learning food approach (left), obstacle avoidance (middle), and wall following (right) behavior

CHC proved to be a reasonable and effective method for designing basic control strategies for a simbot. As shown in Fig 3, the simbots have successfully evolved the expected basic behaviors of food approach, obstacle avoidance, and wall following. This figure depicts the paths taken by the best individual for each of these first three experiments. Note that the control circuits may not be optimal.

Designing Control Strategies in an Office Environment

In the next set of experiments we designed the control strategies of a simbot in a complex office environment by injecting a suitable number of appropriate cases into the GA's initial population. First, we copied one case corresponding to the best individual for a basic behavior from each of the first three experiments for a total of three cases. Second, five cases were selected from the best 30 candidates of the first three experiments' results according to the candidates' fitness values in the office environment. We found that injecting five cases produced better performance than injecting a larger or smaller number of cases. We believe, that injecting a larger number of cases leads to insufficient exploration and injecting a fewer number of cases leads to insufficient exploitation. Five percent is a happy medium. We call the GA injected with these cases the Target Ranked Genetic Algorithm or TR-GA, and the GA injected with the best cases in the basic behavior environments the Source Ranked Genetic Algorithm or SR-GA. We also ran the GA with a randomly initialized population (RI-GA) for comparison purposes.

The maximum performance curves over 10 runs of the genetic algorithm are shown in Fig. 4.

   figure104
Figure 4: The genetic algorithm maximum performance curves

As we can see, the TR-GA significantly out-performed its competitors. Although Fig. 4 compares a TR-GA with five injected individuals to a SR-GA that used three injected individuals, the TR-GA with three injected individuals also did better than the SR-GA, while not doing as well as the TR-GA with five. Somewhat surprisingly the randomly initialized GA did better than the SR-GA, indicating that the best control strategies for basic behaviors may not contain building blocks that help navigation in the office environment and/or may be of low enough fitness to be eliminated during GA processing. More evidence is presented in Table 2 which compares the fitness, in the office environment, of cases injected into the SR-GA with those injected into the TR-GA. We also noted that solutions with high initial fitness in the target office environment may be ranked low in their source environment.

   table111
Table 2: Cases used for SR-GA and TR-GA and their fitness in the office environment. FA = food approach, WF = wall following, OA = obstacle avoidance.

The results indicate that injecting appropriate cases into the initial population of a genetic algorithm can not only help speed up convergence but also provide better quality solutions. However, this will only work if injected solutions contain useful building blocks for solving the new problem, that is, if injected solutions are similar enough to solutions for the new problem. Assuming that problem similarity implies solution similarity is a pre-requisite for our system to perform well [6, 9], but when trying to combine several solutions, we had to re-validate this assumption by evaluating and ranking candidates for injection in the new target environment. Previous results had not indicated the need for ranking cases in the new environment before injection [6]. However, we obtained good agreement in our estimate of the number of individuals to inject. Earlier work had shown that injecting only a small percentage of the population led to good performance while injecting larger percentages led to quick convergence to a local optimum [6]. This agreed with the experimental results reported in this paper where we found that injecting five individuals ( tex2html_wrap_inline413 of the population) provided better performance compared to experiments involving the injection of a smaller or larger number of individuals.

In addition, we need to make sure that the injected individuals contain at least one representative of each basic behavior. Otherwise, the missing basic behavior may have to be evolved from scratch - from the randomly initialized component of the population. Once we have individuals representing each of the basic behaviors, the rest of the candidates for injection compete for the remaining slots on the basis of their performance in the target environment. This ensures that the population is initialized with the needed variety of high performance building blocks.

Figure 5 presents the path of a simbot, controlled by a circuit designed by the TR-GA, in the office environment. Note that although the environment contains many traps in the form of rooms with small doorways, the simbot does not get trapped and manages to avoid two unpromising rooms altogether. The TR-GA designed simbot also eats tex2html_wrap_inline415 of the food over ten runs compared to only tex2html_wrap_inline417 for the randomly initialized GA.

   figure122

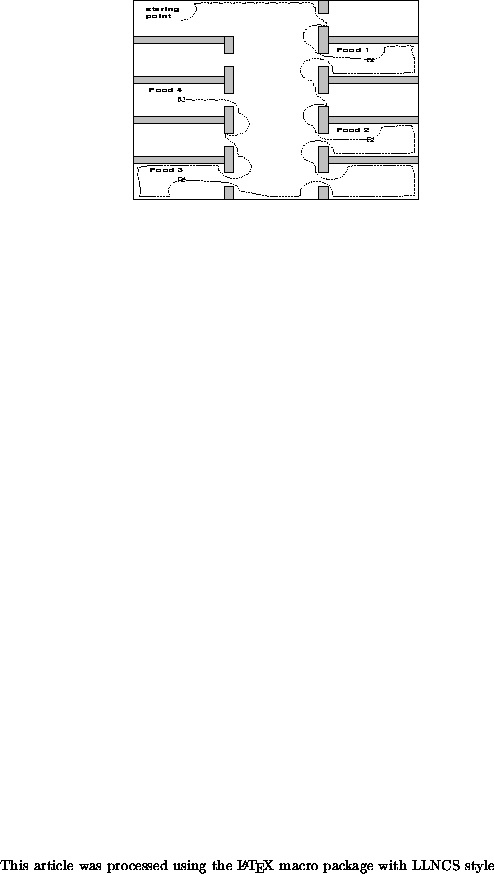

Figure 5: Simbot path in an office environment for a circuit designed by the TR-GA
